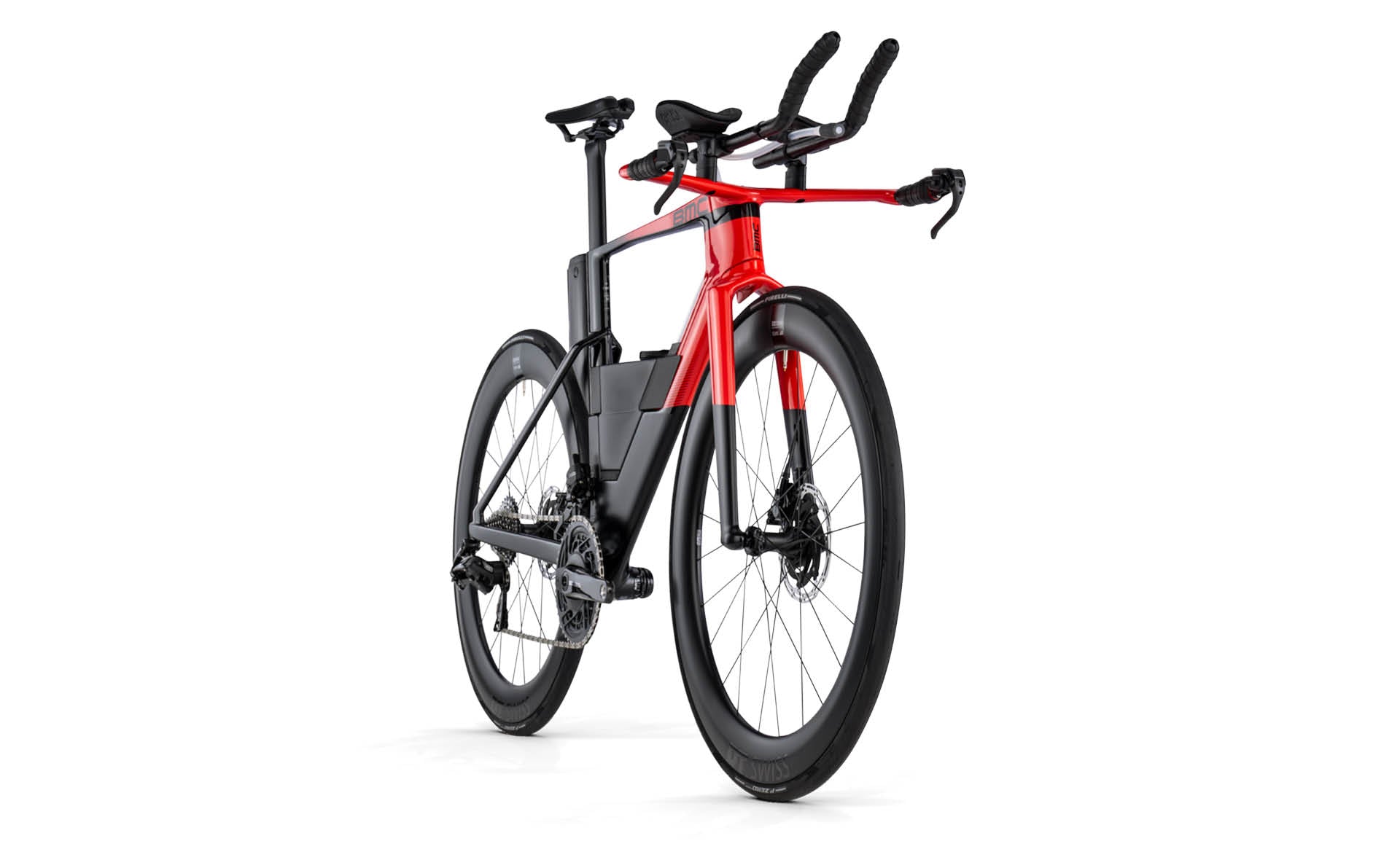

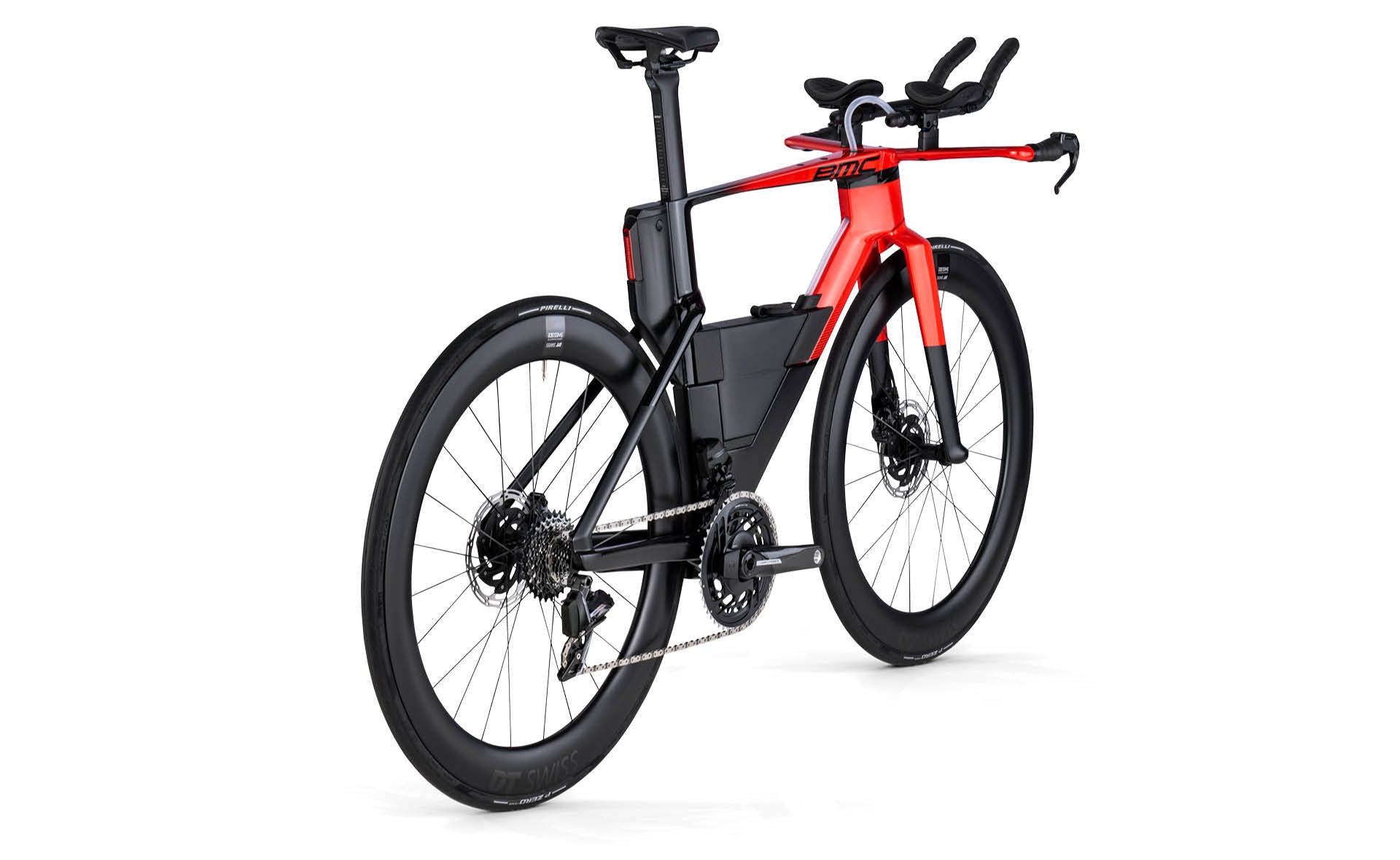

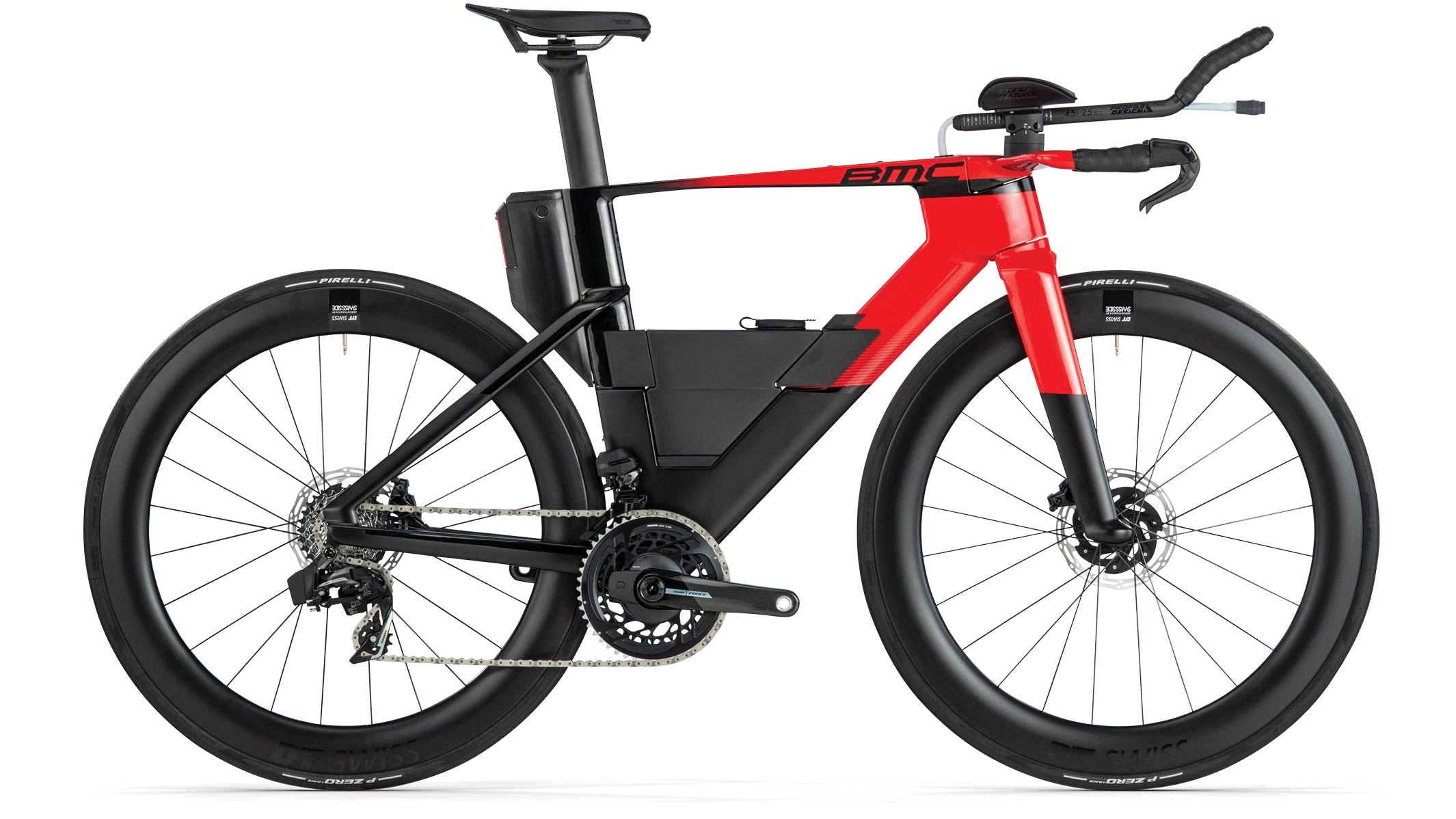

Speed means nothing if you can’t use it. The all-new BMC Speedmachine 01 TWO takes everything you know about triathlon bikes and places the most crucial element at the center – you. Of course, the countless hours in wind tunnels, feedback from some of the fastest cyclists in the world, and technical collaboration with our partners at Red Bull Advanced Technologies were vitally important. But a bike that performs well on paper doesn’t mean anything if the rider can’t actually use it. Finished off with the SRAM Force eTap AXS Groupset and powermeter as well as the DT Swiss ARC 1650 Wheelset with Pirelli P-Zero Race 26mm tires.
Technology
All Aero
Vital Stability
Adaptability
Everything. Integrated.
Technical Overview
Frameset
Frame:
Speedmachine 01 Premium Carbon | ICS Technology Stealth Cable Routing | Integrated Fuel Tank 1200 Hydration System | Integrated Rear Storage 260 | Stealth Dropout Design | Flat Mount Disc | 142x12mm Thru-Axle
Fork:
Speedmachine 01 Premium Carbon | ICS Technology | Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 100 x 12mm Thru-Axle
Cockpit
Handlebar:
BMC Speedmachine Flat Cockpit | Profile Design Aeria Ultimate with Ergo+ Armrests and 45/25 SLC Aerobar Extensions
Seat
Seatpost:
BMC Speedmachine Seatpost 0 Offset | 0mm, 12.5mm, 25mm Offsets
Saddle:
Fizik Transiro Aeris Long Distance R5 or Fizik Mistica Mg
Drivetrain
Crankset:
SRAM Force
Chainrings:
48-35T
Power Meter:
SRAM Force Power Meter
Cassette:
SRAM Force XG-1270
Cassette Size:
10-30T
Chain:
SRAM Apex
Front Derailleur:
SRAM Force eTap AXS
Rear Derailleur:
SRAM Force eTap AXS
Shifters:
SRAM Blip AXS Wireless 4 units
Gears:
2 x 12
Bottom Bracket:
T47 Bottom Bracket
Brakes
Brake Levers / Calipers:
SRAM S-900 Aero HRD Disc Brake
Rotors:
SRAM Centerline XR | Centerlock
Rotor Size (F/R):
160 / 160mm
Wheels
Rims:
DT Swiss ARC 1650 Carbon Disc | 62mm
Hubs (F/R):
DT Swiss ARC 1650 Disc
Tires:
Pirelli P-Zero Race | 26mm
Tubeless Information:
Tubeless Ready Rims | Tubetype Tires
Accessories
Fuel Tank 1200 with straw and bite valve, Rear Storage 260, Intergrated Rear Light
Additional Information
Tire Clearance:
30mm
Weight without Pedals:
9.1 Kg (including FuelTank, Rear Storage and Light)
ASTM Classification:
Level 1
System Weight Limit:
110kg
| Size | S | M | L |
|---|---|---|---|
| Rider Height | <174 | 172-185 | >180 |
| Bar Width | 400 | 400 | 400 |
| BB Drop | 62 | 72 | 72 |
| Crank Length | 165 | 170 | 172.5 |
| Fork Length | 391 | 391 | 391 |
| Front Center | 578 | 606 | 646 |
| Pad Reach Flat Cockpit | 348-466 | 368-486 | 395-548 |
| Pad Stack Flat Cockpit | 558-651 | 588-681 | 628-721 |
| Rear Center | 405 | 405 | 405 |
| Saddle Height Range | 610-740 | 705-835 | 760-881 |
| Seat Angle | 80 | 80 | 82.4 |
| Seat Tube | 460 | 525 | 551 |
| Seatpost Length | 300 | 330 | 360 |
| Seatpost Offset | 0, 12.5, 25 | 0, 12.5, 25 | 0, 12.5, 25 |
| Standover Height | 766 | 806 | 837 |
| Wheelbase | 974 | 1000 | 1040 |
