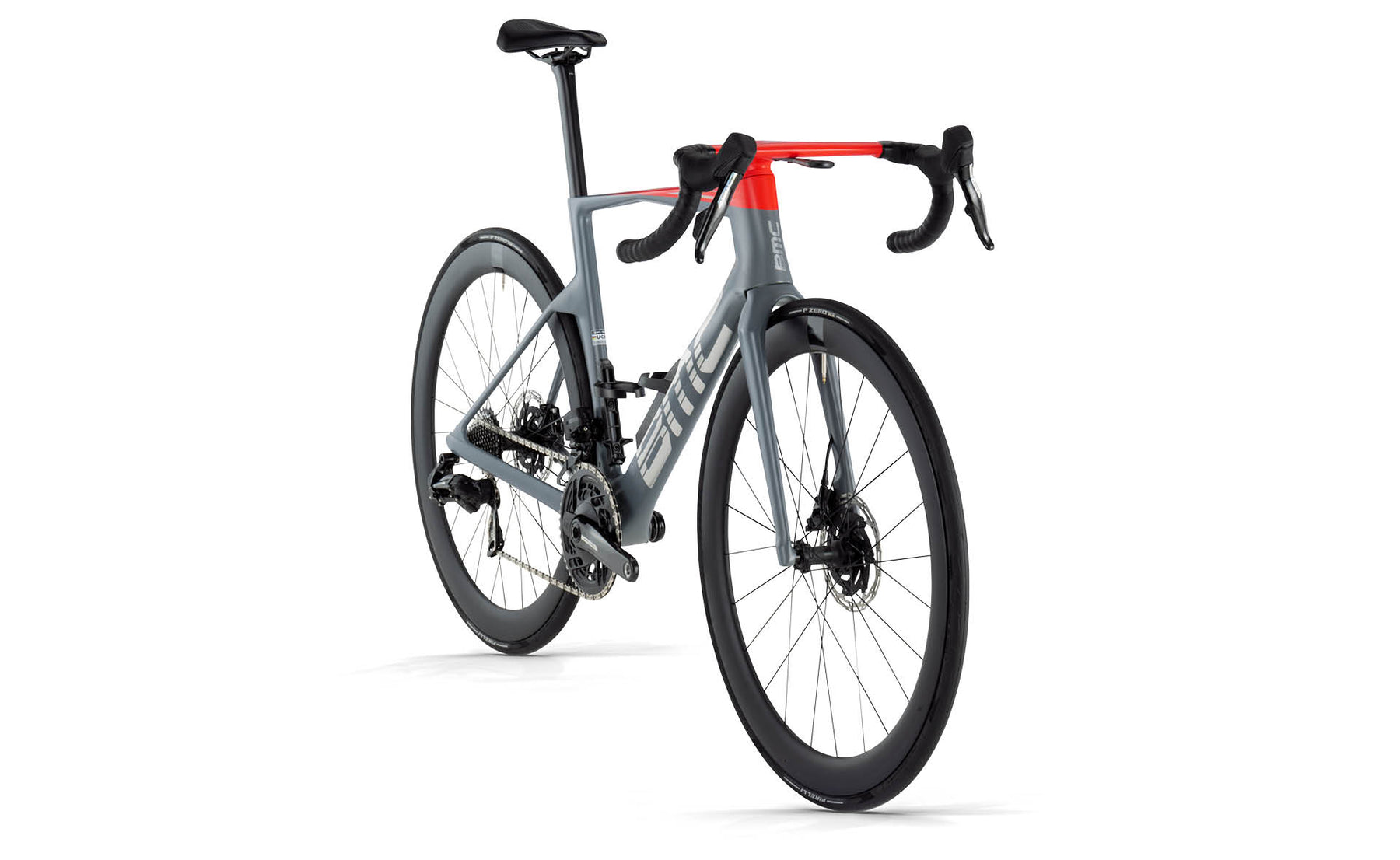

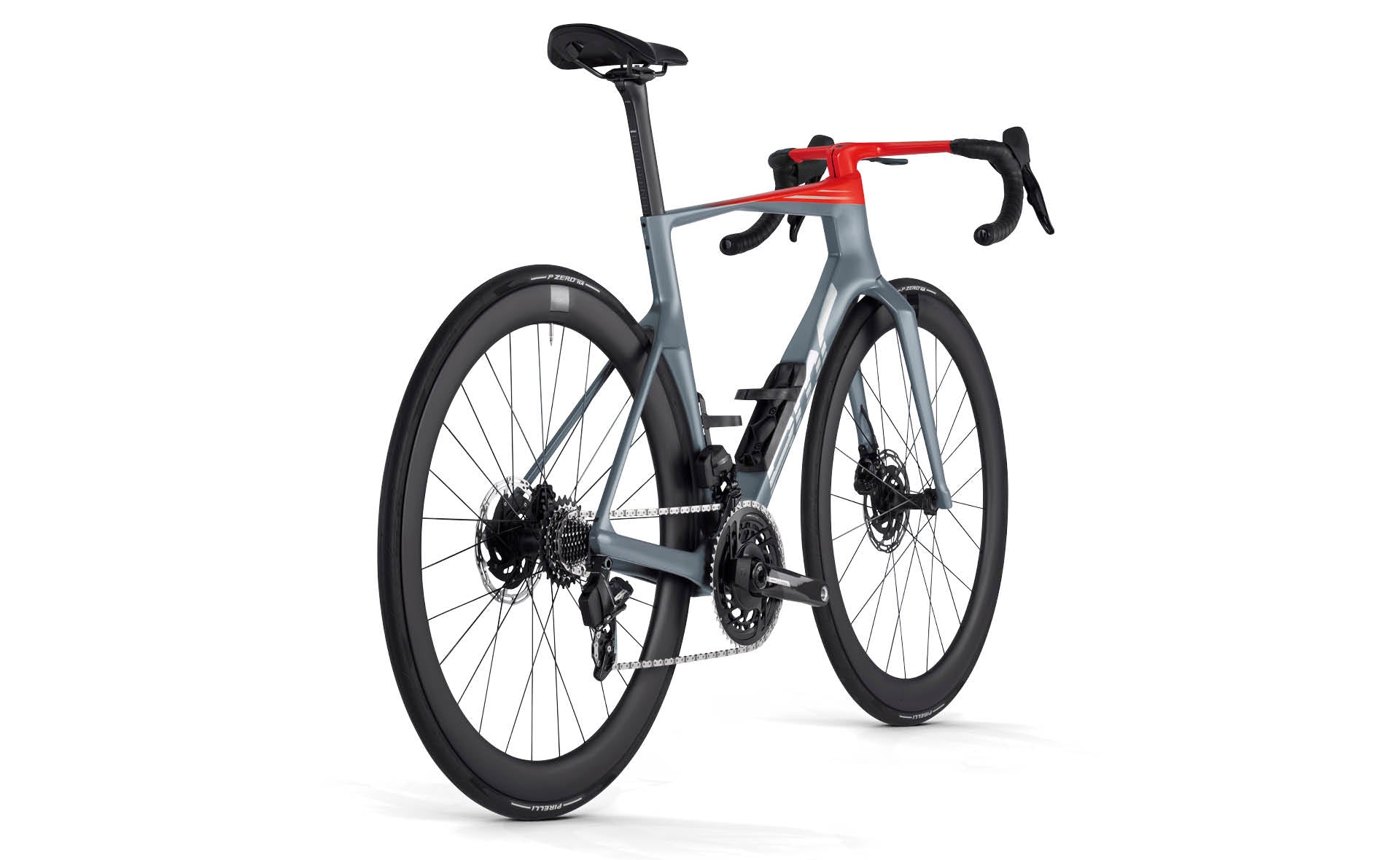

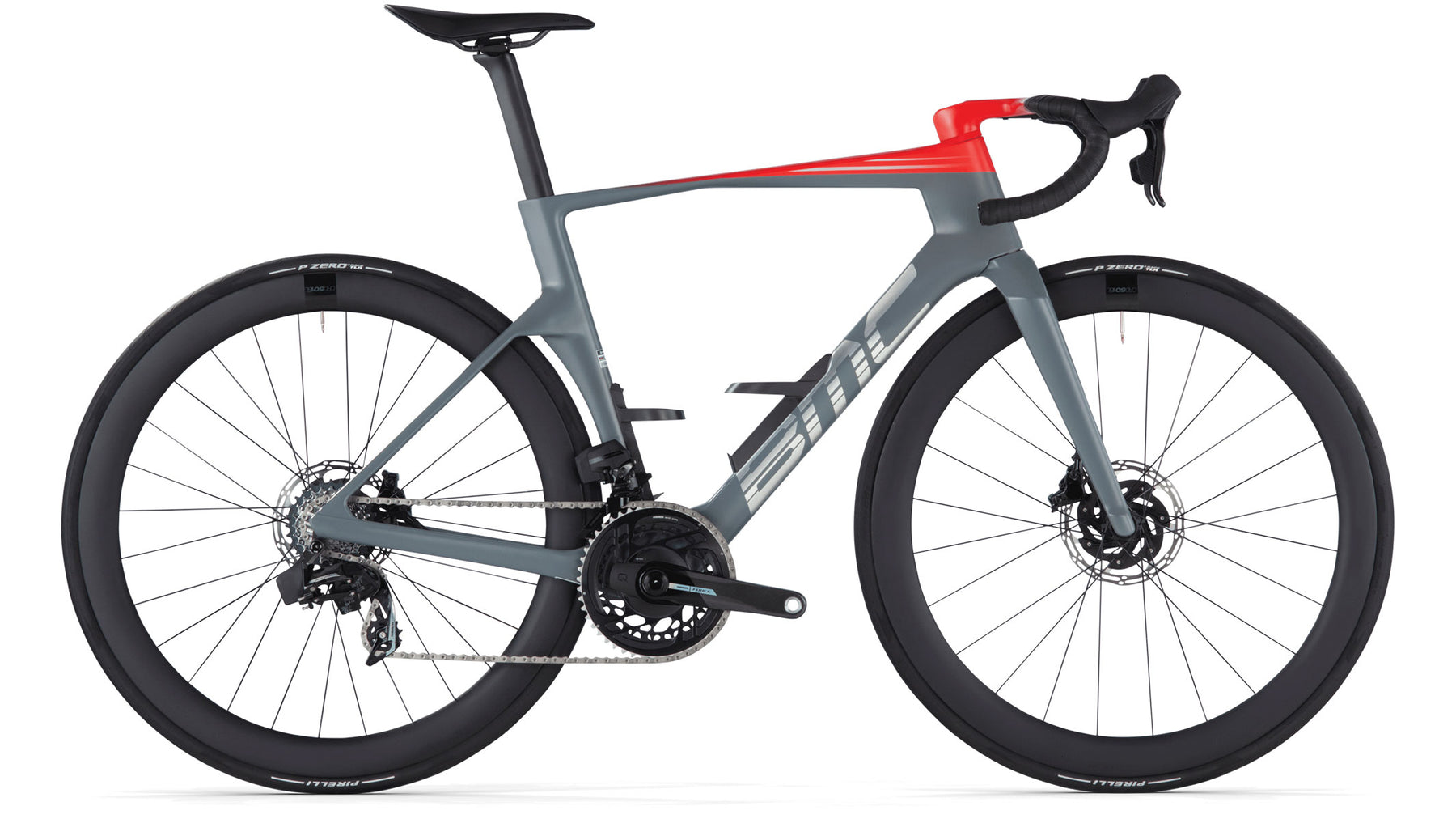

Name: Teammachine R 01 THREE
Brand: BMC
SKU: 30005503
Price: 9499.0 EUR
Availability: InStock

Teammachine R 01 THREE | BMC | bikes | Road, Road | Racing

Iron Grey / Neon Red

SRAM Force eTap AXS Drivetrain with Powermeter
CRD-501 SL Wheelset
ICS Carbon Aero Cockpit

EUR 9.499,00

SKU: 30005503

Size —

Compatible Parts & Accessories

Shipped to your local bike shop

Check for availability within our Retailer Network

[{"id":40925886709839,"title":"47","option1":"47","option2":null,"option3":null,"sku":"30005503","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Teammachine R 01 THREE - 47","public_title":"47","options":["47"],"price":949900,"weight":15000,"compare_at_price":null,"inventory_quantity":8,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906504895","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40925886906447,"title":"51","option1":"51","option2":null,"option3":null,"sku":"30005504","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Teammachine R 01 THREE - 51","public_title":"51","options":["51"],"price":949900,"weight":15000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906504888","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40925886939215,"title":"54","option1":"54","option2":null,"option3":null,"sku":"30005505","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Teammachine R 01 THREE - 54","public_title":"54","options":["54"],"price":949900,"weight":15000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906504871","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40925886971983,"title":"56","option1":"56","option2":null,"option3":null,"sku":"30005506","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Teammachine R 01 THREE - 56","public_title":"56","options":["56"],"price":949900,"weight":15000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906504864","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40925887004751,"title":"58","option1":"58","option2":null,"option3":null,"sku":"30005507","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Teammachine R 01 THREE - 58","public_title":"58","options":["58"],"price":949900,"weight":15000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906504857","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40925887070287,"title":"61","option1":"61","option2":null,"option3":null,"sku":"30005508","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Teammachine R 01 THREE - 61","public_title":"61","options":["61"],"price":949900,"weight":15000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906504840","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Watch Now

The all-new Teammachine R throws compromise out the window. Developed in collaboration with Red Bull Advanced Technologies, the Teammachine R redefines what a race bike is capable of. It does everything you ask of it when you need it most. Built with SRAM Force eTap AXS Drivetrain and powermeter, CRD-501 SL wheelset as well as BMC’s ICS Carbon Aero Cockpit.

Technology

Halo Fork

The ultrawide fork legs are unlike anything else seen in the peloton and help keep turbulent air, created by the front wheel, away from the frame.

ICS Carbon Aero Cockpit

The ICS Carbon Aero Cockpit, with its progressive and aerodynamic shape, is the perfect match for this bike. Featuring a narrow top width, allowing an efficient aero position with a greater width at the drops providing incredible control at high speed.

Deep Bottom Bracket Area

We call it the “Mariana Bottom Bracket” because it’s the deepest bottom bracket we have ever made on a road bike and this perfectly optimizes the surface area for cleaner airflow.

All-new Seatpost

The new seatpost is slimmer, deeper, more compliant, and lighter than ever. With the new seatpost clamp mechanism now easier to access and maintain, including an integrated number plate holder making it the smartest way to get race-ready.

Technical Overview

Frameset

Frame:
Teammachine R 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 142mm Thru-Axle

Fork:
Teammachine R 01 Premium Carbon | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle

Cockpit

Handlebar:
BMC ICS Carbon Aero | One-Piece Full Carbon Cockpit

Seat

Seatpost:
Teammachine R 01 Premium Carbon Seatpost | 10mm Offset

Saddle:
Fizik Argo Vento R3 | 140mm

Drivetrain

Crankset:
SRAM Force

Chainrings:
48-35T

Power Meter:
SRAM Force Power Meter

Cassette:
SRAM Force XG-1270

Cassette Size:
10-28T

Chain:
SRAM Force

Front Derailleur:
SRAM Force eTap AXS

Rear Derailleur:
SRAM Force eTap AXS

Shifters:
SRAM Force eTap AXS

Gears:
2 x 12

Bottom Bracket:
PF86 Bottom Bracket

Brakes

Brake Levers / Calipers:
SRAM Force eTap AXS

Rotors:
SRAM Centerline XR | Centerlock

Rotor Size (F/R):
160 / 160mm

Wheels

Rims:
CRD-501 SL Carbon | Tubeless Ready | 50mm

Hubs (F/R):
CRD-501 SL

Tires:
Pirelli P Zero Race TLR | 26mm

Tubeless Information:
Tubeless Ready Rims | Tubetype Tires

Accessories

In the Box:
Aerocore Bottle Cages

Additional Information

Tire Clearance:
30mm

Weight without Pedals:
7.5 Kg

ASTM Classification:
Level 1

System Weight Limit:
110kg

General Product Safety Regulation (GPSR):
Safety Instructions GPSR (EU)
Responsible person according to GPSR (EU)

Size	47	51	54	56	58	61
Rider Height	<166	166-174	172-180	178-186	184-192	>190
Reach	368	378	387	393	402	409
Stack	504	528	548	563	582	608
Bar Drop	135	135	135		135	135
Bar Reach	77	77	77	77	77	77
Bar Width	360/420	360/420	360/420	360/420	360/420	360/420
BB Drop	69	69	69	69	69	69
Crank Length	170	170	172.5	172.5	175	175
Fork Length	367	367	367	367	367	367
Fork Rake	48	48	43	43	43	43
Front Center	568	586	589	599	614	630
Head Tube	108	133	149	165	185	211
Head Tube Angle	71.5	71.5	72.3	72.3	72.3	72.3
Rear Center	410	410	410	410	410	410
Seat Angle	74	74	73.5	73.5	73	73
Seat Tube	418	463	499	519	541	570
Seatpost Length	335	335	385	385	405	405
Seatpost Offset	10	10	10	10	10	10
Standover Height	721	755	781	799	813	836
Stem Angle	-15	-15	-15	-15	-15	-15
Stem Length	90	100	100	110	110	120
Top Tube	522	532	552	562	582	598
Trail	63	63	63	63	63	63
Wheelbase	968	986	989	999	1015	1030
